Master Lock

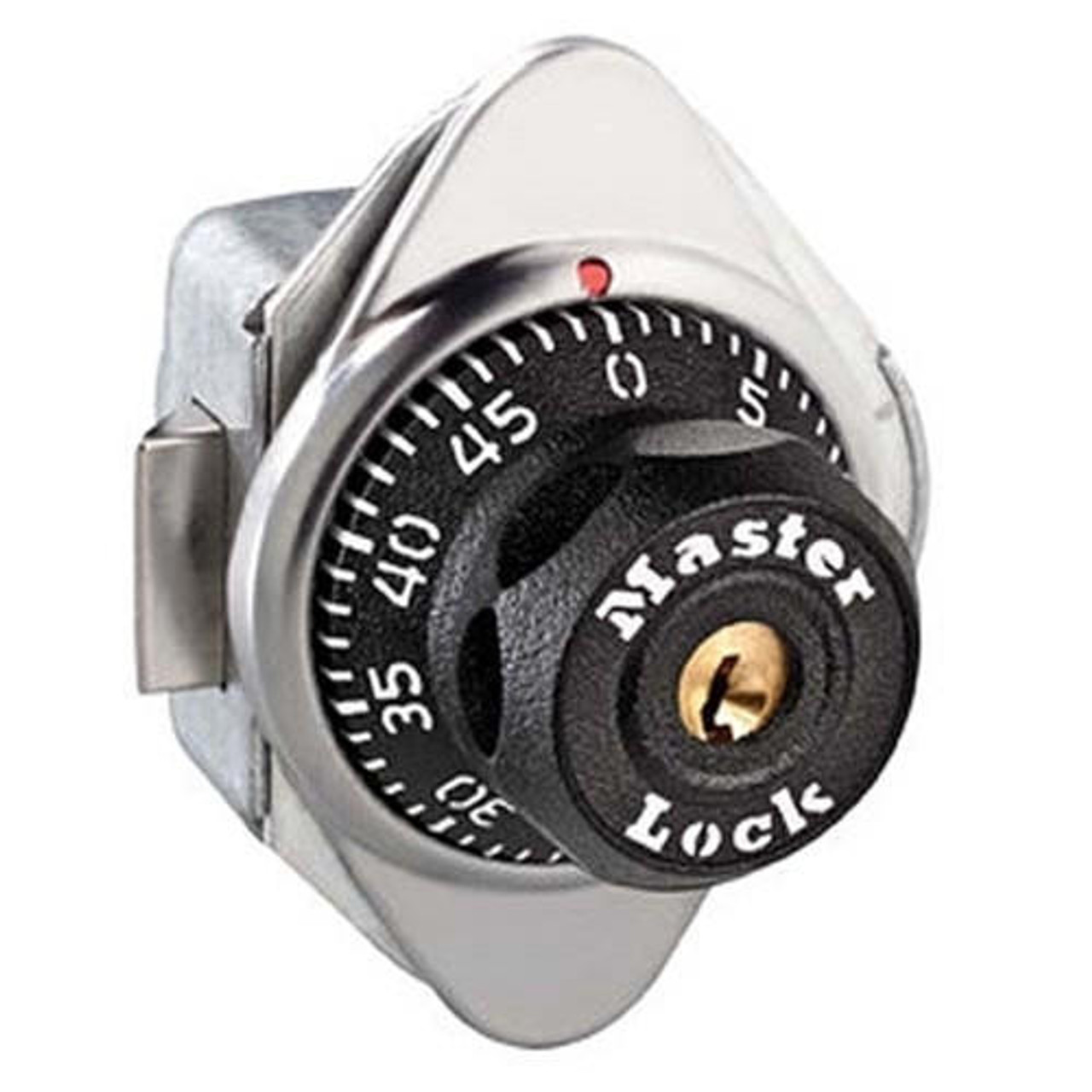

Master Lock Key Controlled Built-In Combination Lock for Horizontal Latch Box Lockers
- SKU:
- ML 1654
- MFG Part #:
- 1654
FILES & RESOURCES
- Brochure:
- Download PDF
DESCRIPTION
Master Lock built-in keyed combination lock with spring bolt for box lockers without handles. Includes Master Control Chart. This lock for a locker comes in right or left hand setups.
*Keys sold separately.
SKU ML 1654: Right Hand
SKU ML 1655: Left Hand
| Material | |
| Casing | : rust resistant steel |
| Dial | : high impact plastic |
| Front face with dial | |
| Height | : 2-29/32" |
| Width | : 1-7/8" |
| Depth | |
| Casing only | : 5/16" |
| Including dial | : 1-1/16" |
| Dial | |
| Outside dia | : 1-9/16" |
| Nose diameter | |
| At front | : 1" |
| Where it meets the dial | : 1-1/8" |
| Depth | : 5/8" |
| Mounting hardware | |
| Bolts - come off the back of the front casing, one at the top and one at the bottom | : |
| Bolt size | : 10-24 |
| Thread length | : 1/2" |
| Bolt to bolt CO | : 2-3/16" |
| Back casing | |
| Height | |
| Including mounting tabs | : 2-11/16" |
| Not including mounting tabs | : 1-21/32" |
| Width, not including locking bolt | : 2" |
| Mounting tabs height | : 17/32" |
| Width | : 1-1/2" |
| Thickness | : 1/16" |
| Mounting holes | |
| Qty | : 2, 1 on top tab, 1 on bottom tab |
| Dia | : 7/32" |
| Hole to hole OC | : 2-3/16" |
| Mounting nuts (included) | |
| Qty | : 2 |
| Type | : 10-24 Hex head serrated flange nut (has serrations on |
| its underside to give 'bite') | |
| Hex outside dia | : 3/8" |
| Combination push button, located on back of the casing dia | : 7/16" |
| Control charts are provided with each lock order, | |
| both on paper and CD | |
