Locker Complete LH Handle Assembly, Pre-1981, includes #LY-2297, #LY-2299-LH & mounting screws
- SKU:
- LY-2231-LH
- MFG Part #:
- NF6741/6756
DESCRIPTION

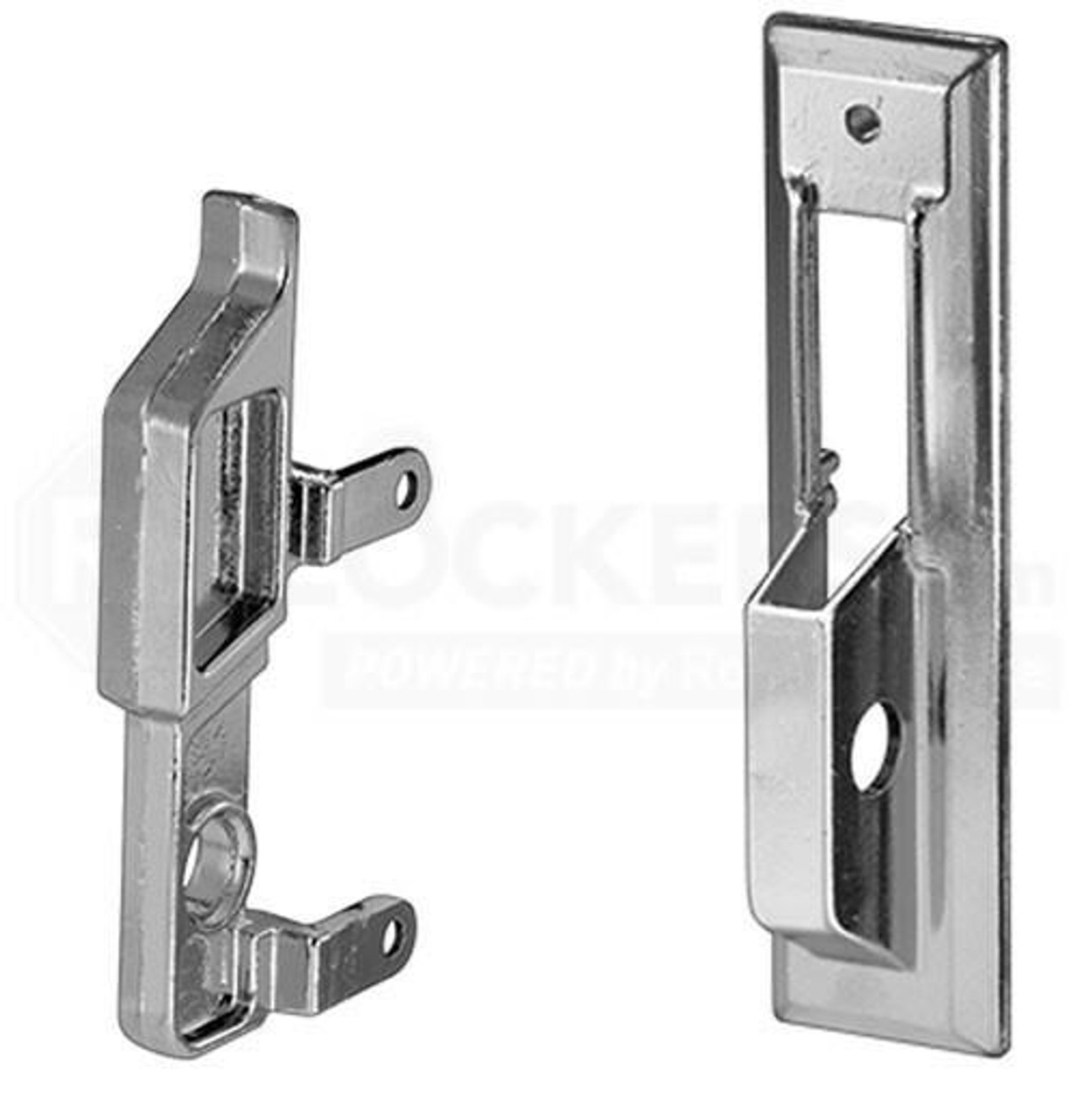

Complete locker handle for Lyon, pre 1981 style. Left hand.| Material | |
| Lift & housing | : Chrome plated zamak |
| Bumper | : Black rubber |
| Thickness | : Varies, from 1/16" to 1/8" |
| LIFT - broken down into the following sections | : |
| - Upper 'grip' section | |
| - Lower section with padlock hole | |
| - Lockbar fingers | |
| Height of upper and lower sections combined | |
| At front of handle | : 2-1/2" |
| At back of handle | : 3-3/16" |
| Upper grip portion | |
| Front | : 1-3/16" |
| Back | : 1-5/8" |
| Lower padlock portion | |
| Front | : 1-5/16" |
| Back | : 1-17/32" |
| Depth | |
| Grip portion | |
| Not including lockbar fingers | : 11/16" |
| Including lockbar fingers | : 1-1/2" |
| Padlock portion | |
| Not including lockbar fingers | : 5/8" |
| Including lockbar fingers | : 1-3/8" |
| Lockbar fingers - there are rectangular platforms that lay | |
| between, and perpendicular to the handle portion and | |
| the lockbar fingers (like a 'T'). When the handle is | |
| installed on the locker door, these platforms butt up | |
| against the outside of the door, acting like a stop. | |
| Each lockbar finger starts at the face of one of the platforms | |
| and has a mounting hole near its tip. | |
| - On the left hand lift, the fingers start at the right front | |
| side of the platform as the fingers point away from you. | |
| - On the right hand lift, the fingers start at the left front | |
| side of the platform as the fingers point away from you. | |
| This is how you can visually identify the handing. | |
| Length of each finger, from the face of the platform | |
| To the tip of the finger | : 9/16" |
| To the center of the mounting hole | : 7/16" |
| Height | : 5/16" |
| Thickness | : 1/8" |
| Mounting hole | |
| Qty | : 2 Each, 1 in each finger |
| Dia | : 5/32" |
| Hole to hole OC | : 1-3/4" |
| Padlock hole dia | : 3/8" |
| HOUSING | |
| Base portion | |
| Height | |
| At the back | : 4-1/16" |
| At the front | : 3-3/4" |
| Width | |
| At the back | : 1" |
| At the front | : 11/16" |
| Mounting holes | |
| Qty | : 2 each. The bottom hole is concealed in the front |
| and accessible from the back only. The top hole is | |
| accessible from the front or back, but it is countersunk, | |
| so the hardware should go in from the front. | |
| Dia | : 5/32" |
| Hold to hole OC | : 3-1/4" |
| Lift slot | |
| Height | : 1-3/16" |
| Width | : 7/16" |
| Kick-proof hood | |
| Width | |
| Where it meets the base | : 7/16" |
| Front edge | : 3/8" |
| Height | |
| Where it meets base | : 13/16" |
| Front edge | : 1-5/16" |
| Padlock hole dia | : 3/8" |
| RUBBER BUMPER (included with mounting hardware) | |
| Height | : 1/4" |
| Width | : 5/8" |
| Thickness | : 3/16" |
| MOUNTING HARDWARE | |
| For lift | : 2 EA 8-32 X 1/2" Phillips round head machine screw |
| For housing | : 2 EA 8-32 X 3/8" Phillips countersunk machine screw |
