Jacknob Corp.

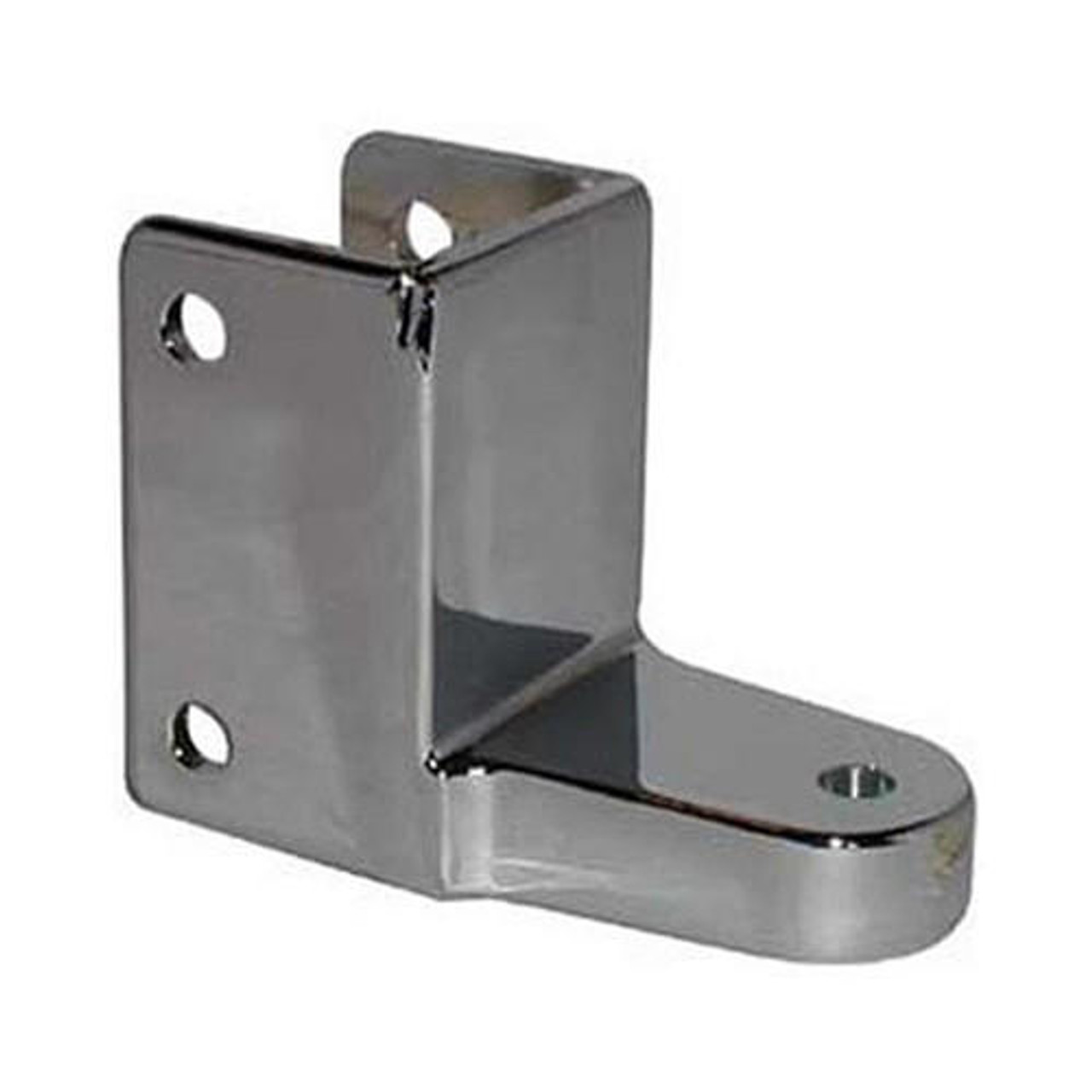

Bottom hinge with A CAM pintle for Knickerbocker & General plastic laminate partitions

$17.34
SKU:
TP 171B
MFG Part #:
3310 / 97275
Add to Wish list

DESCRIPTION

Universal bottom hinge for 1 1/4", square edge pilasters.

SPECIFICATIONS

General description Upper hinge and pintle for Knickerbocker
and General brand plastic laminate partition doors
Material
Hinge Chrome plated zamak
Pintle and nut Black nylon upper, steel lower
Hinge
Mounting portion
Height 2-1/4"
Width
Inside 1-9/32"
Outside 1-1/2"
Depth
Inside 1-1/4"
Outside 1-5/16"
Material thickness 3/32"
Mounting holes
Qty 4 each. 2 on each ear, one above the other
Dia 9/32"
Hole to hole OC 1-1/2"
Distance from top or bottom of edge of ear
to edge of hole 7/32"
Tongue
Overall length, from face of mounting portion 1-11/16"
'A' Dimension (distance from center of hinge pin hole to
back side face of mounting portion) 1-25/64" or 1.385"
(between 1-3/8" and 1-13/32")
Hinge pin hole diameter
Nylon bushing No
At the top 1/4"
At the bottom 7/32"
Width
At the center of the hinge pin hole 31/32"
Where it connects to mounting portion Approx. 1-1/4"
Height
At the center of the hinge pin hole 1/2"
Where it connects to mounting portion 35/64"
(between 17/32" and 9/16")
Pintle & nut
Upper portion
Dia 19/32"
Height, at the highest point 1-5/16"
Lower portion
Overall length 7/8"
Thread size 10-24 x 9/16"
Nut
Style Hex nylon locking
Thread size 10-24
Outside dia 5/16"
