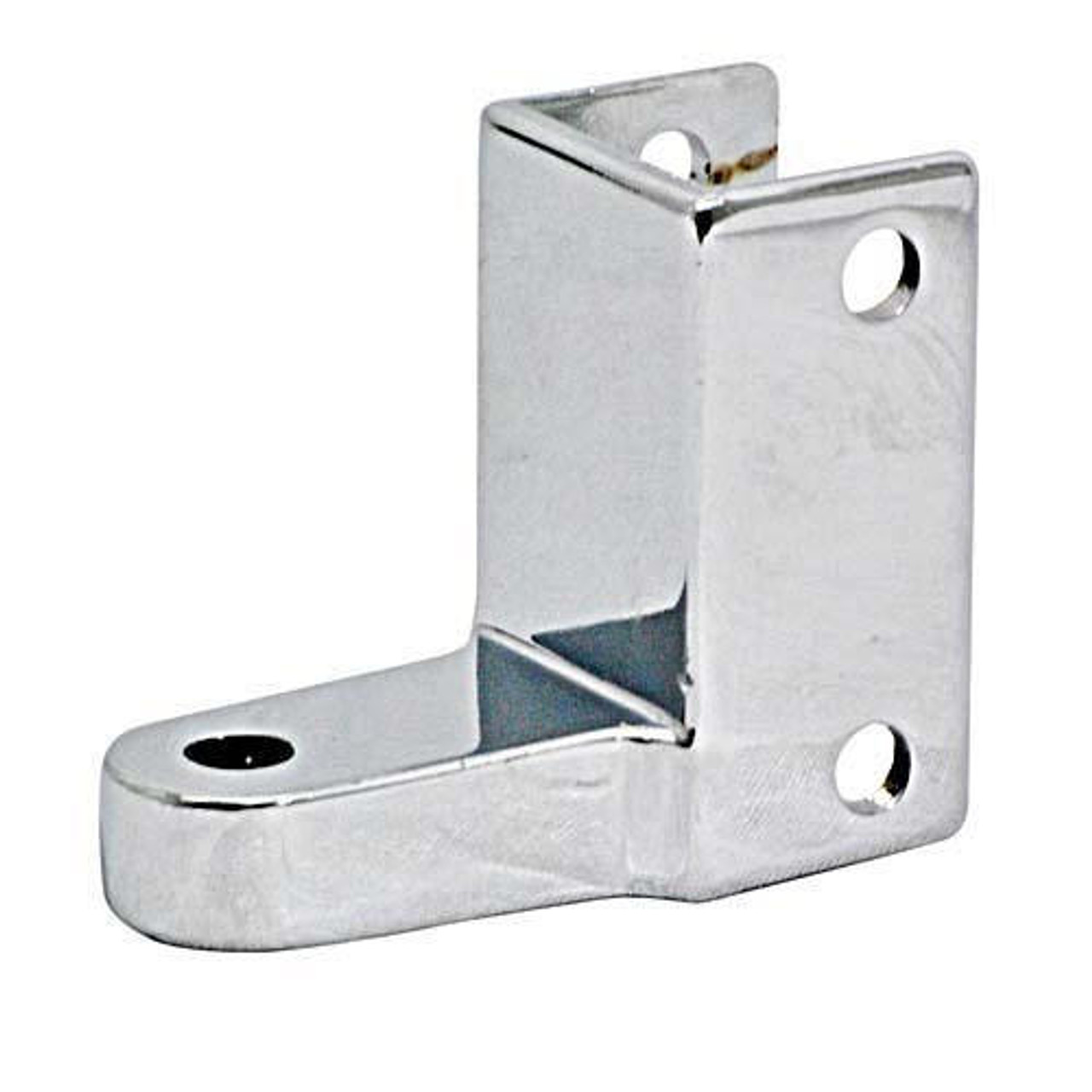

Bottom hinge for 1" Square edge pilaster; chrome plated zamak
- SKU:
- 3260
- MFG Part #:
- 3260
DESCRIPTION
This Bottom hinge for 1" Squared edge pilaster is used as bathroom partition hardware; chrome plated zamak.
| Material | : Chrome plated zamak |
| 'A' dimension | : 1-17/64" (between 1-1/4" and 1-9/32"), or 1.265 |
| Overall depth | : 2-9/16" |
| Mounting area | |
| Height | : 2-1/8" |
| Width | |
| Inside | : 1-1/64" |
| Outside | : 1-15/64" (between 1-7/32" and 1-1/4") |
| Depth of forks | |
| Inside | : 15/16" |
| Outside | : 1" |
| Mounting holes | |
| Qty | : 4 each. 2 per fork |
| Dia | : 1-9/32" |
| Hole to hole OC | : 1-1/2" |
| Distance from top or bottom edge of fork to edge of hole | : 3/16" |
| Tongue | |
| Total length, from mounting face | : 1-9/16" |
| Width | |
| At center of pintle hole | : 13/16" |
| Where it connects to mounting face | : Approx. 1" |
| Thickness | |
| At center of pintle hole | : 1/2" |
| Where it connects to mounting face | : 17/32" |
| 'A' dimension (from center of pintle hole to the BACK | |
| of the mounting face) | : 1-17/64" (between 1-1/4" and 1-9/32"), |
| or 1.265" | |
