10-24 Torx tamper proof shoulder Screw; 1-1/2 thru 1-3/4 grip range -Pack of 100 each
- SKU:
- TP 302TT
- MFG Part #:
- 990088283
DESCRIPTION

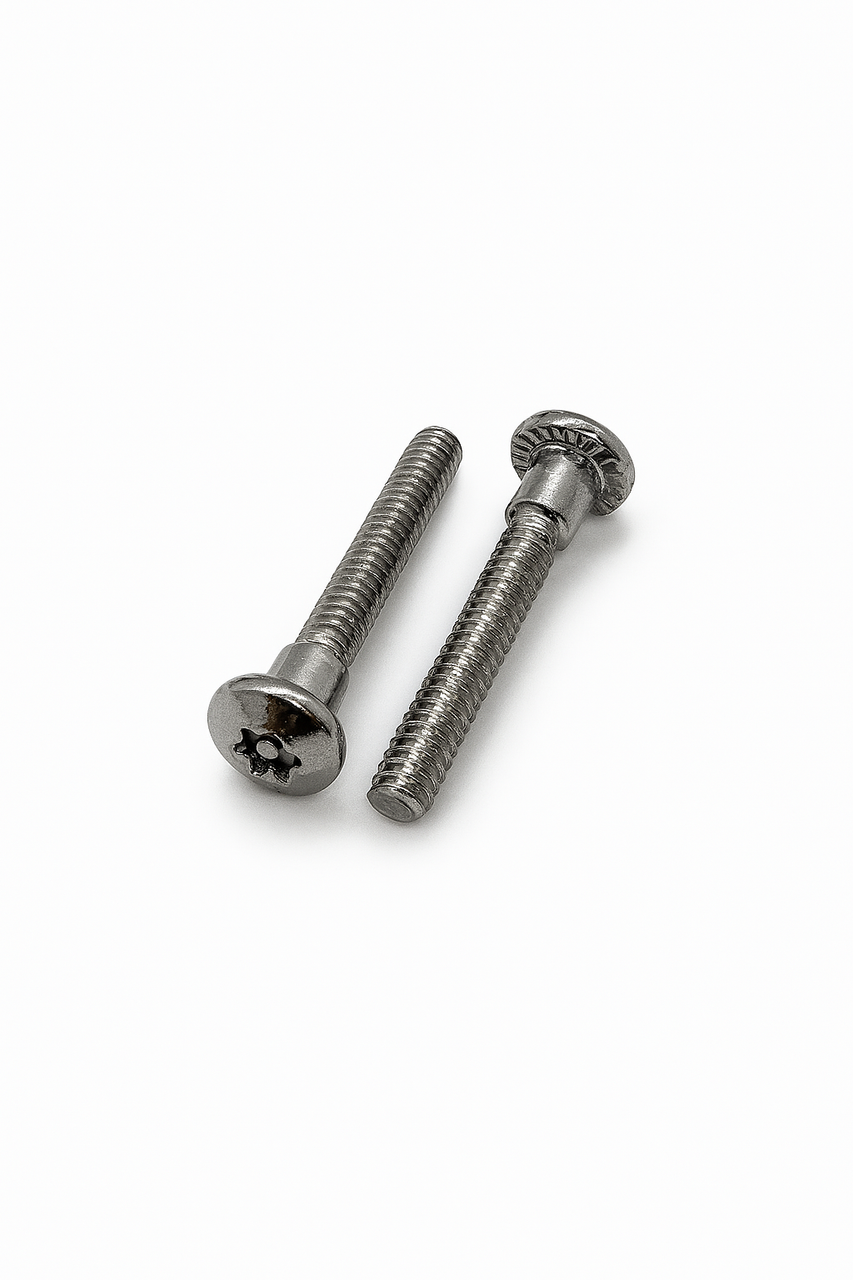

10-24 Torx tamper proof shoulder Screw; 1-1/2 thru 1-3/4 grip range -Pack of 100 each.
**Please note - Female Barrel Nuts are NOT included**
| General description | : Torx tamper proof shoulder screw |
| Material | : Chrome plated steel |
| Length under head | : 1-5/16" |
| Grip range | : |
| - With TP 303TT 5/8" Barrel nut | : 1-13/32" to 1-11/16" |
| - With TP 88103 1/2" Barrel nut | : 1-13/32" to 1-9/16" |
| Note | : |
| - Short range is taken with nut as far in towards | |
| the shoulder as it will go | |
| - Widest range is taken after backing the nut out | |
| to within 1/4" of the end | : |
| Head | |
| Style | : Torx with pin and serrated underside |
| Dia | : 7/16" |
| Drive bit size | : T27 |
| Shoulder | |
| Dia | : 1/4" |
| Length | : 1/4" |
| Threads | |
| Type | : 10-24 Machine screw |
| Dia | : 3/16" |
| Length | : 1-1/16" |
| Use IIT-10002 or WIL-00054 to remove. | |
