Quickship

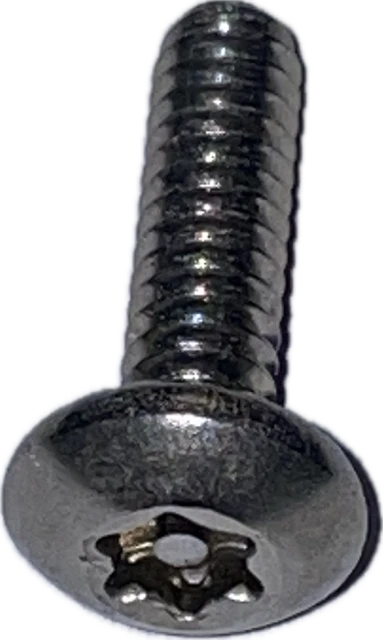

10-24 Torx Shoulder Screw, 15/16" Chrome; (100 per pack)
- SKU:
- TP 301TT
- MFG Part #:
- 990088253
DESCRIPTION
New "Easy" install hardware. This hardware features the TORX Tamper-Proof head that requires a special tool bit (TORX T25H) to install or remove. Easy to use as phillips head hardware but vandals cannot loosen or remove the screws. Plated, steel TORX tamper-proof shoulder screw. 10-24, grip range 1-1/8" to 1-3/8". Use with TP 303TT barrel nut and the 16IN1TOOL.
**Please note - Female Barrel Nuts are NOT included**
| General description | : Torx tamper proof shoulder screw |
| Material | : Chrome plated steel |
| Length under head | : 15/16" |
| Grip range | : |
| - With TP 303TT 5/8" Barrel nut | : 1-1/16" to 1-3/8" |
| - With TP 88203 1/2" Barrel nut | : 1-1/16" to 1-1/4" |
| Note | : |
| - Short range is taken with nut as far in towards | |
| the shoulder as it will go | |
| - Widest range is taken after backing the nut out | |
| to within 1/4" of the end | : |
| Head | |
| Style | : Torx with pin and serrated underside |
| Dia | : 7/16" |
| Drive bit size | : T27 |
| Shoulder | |
| Dia | : 15/64" (between 7/32" and 1/4") |
| Length | : 5/32" |
| Threads | |
| Type | : 10-24 Machine screw |
| Dia | : 3/16" |
| Length | : 25/32" |
| Use IIT-10002 or WIL-00054 to remove. | |
