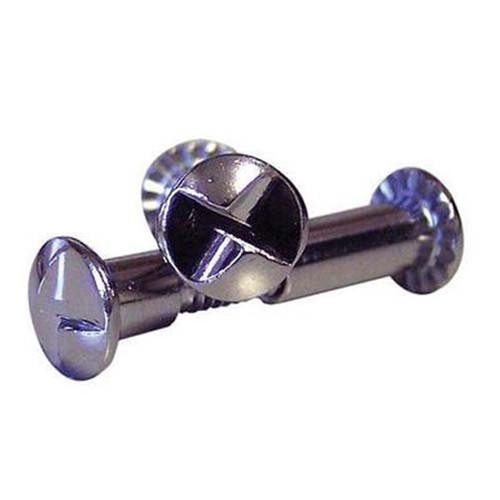

10-24 One-way Round Head Shoulder screw With 11/16 Thru 1 Grip Range -(Chrome) Pack of 100 each-
- SKU:
- TP 305
- MFG Part #:
- 990009773
DESCRIPTION
Stainless steel, one-way, tamper-proof screw to attach brackets and latches to doors and panels. 10-24. Grip range is 11/16" to 1".| General description | : One-way shoulder screw |
| Material | : Chrome plated steel |
| Length under head | : 1/2" |
| Grip range | |
| With TP 303 5/8" Barrel nut | : 13/16" to 7/8" |
| With TP 9703 1/2" Barrel nut | : 11/16" to 13/16" |
| Note | : |
| - Short range is taken with nut as far in towards | |
| the shoulder as it will go | |
| - Widest range is taken after backing the nut out | |
| to within 1/4" of the end | : |
| Head | |
| Style | : One-way, with serrated underside |
| Dia | : 7/16" |
| Shoulder | |
| Dia | : 15/64" |
| Length | : 5/32" |
| Threads | |
| Type | : 10-24 Machine screw |
| Dia | : 3/16" |
| Length | : |
