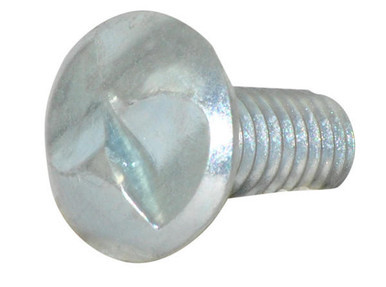

10-24 One-way Round Head Shoulder screw With 1-1/8 Thru 1-3/8 Grip range -Pack of 100 each
- SKU:
- TP 301
- MFG Part #:
- 990009793
DESCRIPTION
Stainless steel tamper-proof screws to attach toilet partition brackets and latches to panels & doors. 10-24. For 1-1/4" thick panels. Grip range 1-1/8" to 1-3/8". TP 303 Female Barrel Nut sold separately.
| General description | : One-way shoulder screw |
| Material | : chrome plated steel |
| Length under head | : 15/16" |
| Grip range | : |
| - With TP 303 5/8" Barrel nut | : 1-1/16" to 1-3/8" |
| - With TP 9703 1/2" Barrel nut | : 1-1/16" to 1-1/4" |
| Note | : |
| - Short range is taken with nut as far in towards | |
| the shoulder as it will go | |
| - Widest range is taken after backing the nut out | |
| to within 1/4" of the end | : |
| Head | |
| Style | : One-way, serrated underneath |
| Dia | : 7/16" |
| Shoulder | |
| Dia | : 15/64" (between 3/16" and 1/4") |
| Length | : 19/64" (between 9/32" and 5/16") |
| Thread | |
| Type | : 10-24 Machine screw |
| Dia | : 3/16" |
| Length | : 11/16" |
